GLP2-BASIC

The new standard!

All kinds of electronic products may be inspected according to the latest state-of-the-art single- and multitester GLP2-Basic. To solve a variety of different test taks and to meet your individual requirements, you can choose from over 45 different GLP2-BASIC models.

Thanks to the intelligent features, the tester covers all application fields in today´s safety- and functional test technology. It is ideally suited for production, laboratory, test field, quality management, automation and more.

The variety of features, e.g. to create your own test sequences, to enter your own data as serial number, result storage, freely configurable label print out, barcode function and many more leave nothing to be desired.

With regard to cost savings and environmental awareness, for many companies the increase of energy efficiency is an essential goal to be pursued.  In energy-intensive sectors like the production, SCHLEICH supports you with sustainable and eco-friendly technology. For "clean" results"!

To offer perfect experience our engineers integrate only the latest technology in our testers. That is why SCHLEICH, as leading innovator, was the first manufacturer in the market who installed user-friendly touch screens in the testers.

Ergonomically-optimized workplaces may increase performance to a large extent.  To optimize the individual workplace, SCHLEICH entirely revolutionized the housing concept.

Whether sitting or standing, small or tall person- the ergonomic housing design sets new standards for fatigue-free work. Thus, looking at the display, entering data as well as connecting the test object at the test socket is always perfectly-suitable for the operator.

Enormous flexibility and fast technology, combined in ergonomic design - SCHLEICH offers safety- and functional test technology which inspires!



Flow of a high-voltage test:

Test bench - Repair station- Laboratory | Manual inspection

The GLP2-BASIC tester is immediately ready to perform your measurements. By means of the unique manual mode, all integrated test methods may directly be applied. There is no need to generate a test sequence in advance! You only select the requested test method and start the test.

Similar to a multimeter, the test results are displayed on the tester´s screen. Thus, the detailed evaluation of your test object is immediately possible.

Even long-term analyses, with a duration of several hours, days or even weeks may be run in this operating mode.

---

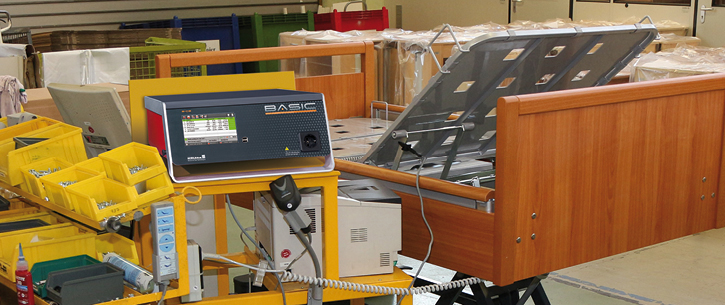

Production| Semi-automatic inspection

Typical tests in production are either performed manually with test proces and/ or fully-automatic. Thanks to the convenient user guidance the GLP2-Basic tester offers perfect testing conditions for these applications.
For the inspection of different test objects you can save an almost unlimited number of test sequences in the GLP2-Basic tester which can be opened and started by using the touch display, keyboard or barcode. If requested, the tester generates a label directly after the end of a test.
Furthermore a great number of order data may be entered, which can be printed on the SCHLEICH-standard test report in addition to the test results.

---

Serial production| Fully-automatic inspection

The GLP2-BASIC may be easily integrated in your production line. The tester´s dimensions are based on a 19"-housing, which means that it perfectly fits in your plant. Additional, flexible interfaces allow an entire remote control. A connection to a master PC or a PLC may easily be established.
For the inspection of different kinds of test objects you can save a great number of test sequences, which can be opened and started by the interface before the test is started.
All test results are retrievable by means of the interface and may be saved by the master PC in a central database. Furthermore it is possible to save the test resutls locally on the tester or directly in the computer network.
For even more flexibility we also recommend the GLP2-ce-MODULAR tester. Both tester classes have successfully been integrated in our system solutions.

Benefits at a glance.

Measuring technology

• Precise and fast measurements
• TRMS » true R.M.S. measurement
• R.M.S.- and peak value measurement
• Effective-and apparent current measurement, cosφ
• Effective-and apparent power measurement

PE/ Ground AC

• PE/ Ground resistance, voltage drop
• 10-30 A AC, adjustable, electronically controlled
• 6-12 V AC
• 0-1200 mΩ

Insulation DC

• Insulation resistance
• 30-1000 V DC, adjustable, electronically controlled
• max. 3 mA
• 100 KΩ-10MΩ

High-voltage AC

• 50-6000 V AC, adjustable, electronically controlled
• with safety current limiting max. 3 mA
• without safety current limiting max. 100 mA
• incl. ARC-detection

High-voltage DC

• 50-6000 V DC, adjustable, electronically controlled
• with safety current limiting max. 4 mA
• without safety current limiting max. 100 mA

Function 5 A

• 12-260 V AC,adjustable, electronically controlled
• max. 5 A
• max. 1300 W, 1300 VA, 1300 VAR
• incl. short-circuit test

Leakage current 5 A

• according to standard EN60990 & EN60601 & UL-measruing circuits
• R.M.S., peak value, DC-/AC-share
• 1 μA-30 mA

Function 16 A

• 12-260 V AC, external supply
• max. 16 A
• max. 4200 W, 4200 VA, 4200 VAR
• incl. short-circuit test

Equivalent leakage current 16 A

• 10 μA-30 mA
• test voltage 40 V AC
• conversion to 230 V AC

Resistance

• 1 Ω-100 kΩ



⇒ More details available under Download.

45 standard testers to solve each test task.



 › HV AC

 › HV DC

 › HV AC/DC

 › IR · HV DC

 › IR · HV AC/DC

 › PE · IR · HV AC

 › PE · IR · HV DC

 › PE · IR · HV AC/DC

 › PE · IR · Function

 › PE · IR · LC · Function

 › PE · IR · HV AC · Function

 › PE · IR · HV AC · LC · Function

 › PE · IR · HV DC · Function

 › PE · IR · HV DC · LC · Function

 › PE · IR · HV AC/DC · LC · Function

---

HV AC

BASIC 320

HV

6000 V | ≤3 mA

BASIC 330

HV

6000 V | 100 mA

---

HV DC

BASIC 440

HV

6000 V | 100 mA​

---

HV AC/DC

BASIC 530	HV AC	6000 V | 100 mA
	HV DC	6000 V | 100 mA

---

IR · HV DC

BASIC 820	IR	1000 V | ≤3 mA
	HV DC	6000 V | ≤4 mA

---

IR · HV AC/DC

BASIC 920	IR	1000 V | ≤3 mA
	HV AC	6000 V | ≤3 mA
	HV DC	6000 V | ≤4 mA

BASIC 930	IR	1000 V | ≤3 mA
	HV AC	6000 V | 100 mA
	HV DC	6000 V | ≤4 mA

BASIC 940	IR	1000 V | ≤3 mA
	HV AC	6000 V | 100 mA
	HV DC	6000 V | 100 mA

---

PE · IR · HV AC

BASIC 1030	PE	30 A AC | 6/12 V
	IR	1000 V | ≤3 mA
	HV	6000 V | ≤3 mA

BASIC 1040	PE	30 A AC | 6/12 V
BASIC 1041	IR	1000 V | ≤3 mA
	HV	6000 V AC | 100 mA
	2 connection types

---

PE · IR · HV DC

BASIC 1130	PE	30 A AC | 6/12 V
BASIC 1131	IR	1000 V | ≤3 mA
	HV	6000 V DC | ≤4 mA
	2 connection types

---

PE · IR · HV AC/DC

BASIC 1220	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	HV AC	6000 V | ≤3 mA
	HV DC	6000 V | ≤4 mA

BASIC 1230	PE	30 A | 6/12 V
BASIC 1231	IR	1000 V | ≤3 mA
	HV AC	6000 V | 100 mA
	HV DC	6000 V | ≤4 mA
	2 connection types

BASIC 1240	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	HV AC	6000 V | 100 mA
	HV DC	6000 V | 100 mA

---

PE · IR · Fct

BASIC 1320	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	Fct AC	250 V | 5 A

BASIC 1322	PE	30 A | 6/12 V
	Iso	1000 V | ≤3 mA
	Con	Continuity
	Fct DC	60 V | 5 A

BASIC 1330	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	Fct AC	250 V | 16 A

---

PE · IR · LC · Fct

BASIC 1420	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	LC	leakage current, standard-compliant
	Fct AC	250 V | 5 A

BASIC 1430	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	LC	equivalent leakage current
	Fct DC	60 V | 16 A

---

PE · IR · HV AC · Fct

BASIC 1520	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	HV AC	6000 V | ≤3 mA
	Fct AC	250 V | 5 A

BASIC 1530	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	HV AC	6000 V | 100 mA
	Fct AC	250 V | 5 A

BASIC 1540	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	HV AC	6000 V | ≤3 mA
	Fct AC	250 V | 16 A

BASIC 1550	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	HV AC	6000 V | 100 mA
	Fct AC	250 V | 16 A

---

PE · IR · HV AC · LC · Fct

BASIC 1620	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	HV AC	6000 V | ≤3 mA
	LC	leakage current, standard-compliant
	Fct AC	250 V | 5 A

BASIC 1630	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	LC	standard-compliant
	HV AC	6000 V | 100 mA
	Fct AC	250 V | 5 A

BASIC 1640	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	LC	equivalent leakage current
	HV AC	6000 V | ≤3 mA
	Fct AC	250 V | 16 A

BASIC 1650	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	LC	equivalent leakage current
	HV AC	6000 V | 100 mA
	Fct AC	250 V | 16 A

---

PE · IR · HV DC · Fckt

BASIC 1720	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	HV DC	6000 V | ≤4 mA
	Fct AC	250 V | 5 A

BASIC 1740	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	HV DC	6000 V | ≤4 mA
	Fct AC	250 V | 16 A

---

PE · IR · HV DC · LC · Fct

BASIC 1820	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	HV DC	6000 V | ≤4 mA
	LC	leakage current, standard-compliant
	Fct AC	250 V | 5 A

BASIC 1840	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	HV DC	6000 V | ≤4 mA
	LC	equivalent leakage current
	Fct AC	250 V | 16 A

---

PE · IR · HV AC/DC · LC · Fct

BASIC 1920	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	HV AC	6000 V | ≤3 mA
	HV DC	6000 V | ≤4 mA
	LC	leakage current, standard-compliant
	Fct AC	250 V | 5 A

BASIC 1930	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	LC	leakage current, standard-compliant
	HV AC	6000 V | 100 mA
	HV DC	6000 V | ≤4 mA
	Fct AC	250 V | 5 A

BASIC 1940	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	LC	equivalent leakage current
	HV AC	6000 V | ≤3 mA
	HV DC	6000 V | ≤4 mA
	Fct AC	250 V | 16 A

BASIC 1950	PE	30 A | 6/12 V
	IR	1000 V | ≤3 mA
	Con	Continuity
	LC	equivalent leakage current
	HV AC	6000 V | 100 mA
	HV DC	6000 V | ≤4 mA
	Fct AC	250 V | 16 A

---

PE	PE resistance test / ground bond
IR	Insulation resistance test
HV AC	High-voltage test with AC
HV DC	High-voltage test with DC
LC	Leakage current or equivalent leakage current
Con	Continuity test/ short-circuit test before function test
Fct AC	Function test with AC
Fct DC	Function test with DC

Leakage current test according to standards: EN 60601 & EN 60990

≤ means, that the test current is safety current limited.



In case the GLP2-BASIC does not provide the perfect configuration for you, you may find a suitable alternative with the GLP1- testers.
