Connection boxes

Country-specific test sockets and free lead ends.

Many test objects are contacted via power plug, which is inserted in the connection box´s test socket by the operator.
The different test sockets are order-related equipped and, of course, suitable for the respective application and task.

You can choose from 4 standard connection boxes with different features, furthermore we also manufacture the contacting suitable for your application.

To contact free lead ends, the connection boxes are equipped with additional quick fastening clamps, which are connected to the test socket in parallel.

As some country-specific sockets are not suitable for high-voltages of 6 KV, they can be separated by a bridging plug.

For special measuring tasks, it is also possible to connect special measuring leads with the 4mm pole sockets

Practicable. Solid. Economical.

Contacting of an ironing station

• connection box with Schuko-test socket
• 4-wire-technology up to the test socket

Contacting of an ironing station

• connection box for the manual high-voltage test
• 2 x contacting pads for test probes
• 1 x pad to the PE/ GND in the test socket
• 1 x Pad to L&N bridged in the test socket
• Equippable with country-specific sockets

Special connection box with 13 connection clamps

• 10 x 1-phase test socket
• 3 x 3-phase test socket
• 13 x pneumatic single clamps

Technology at a glance.

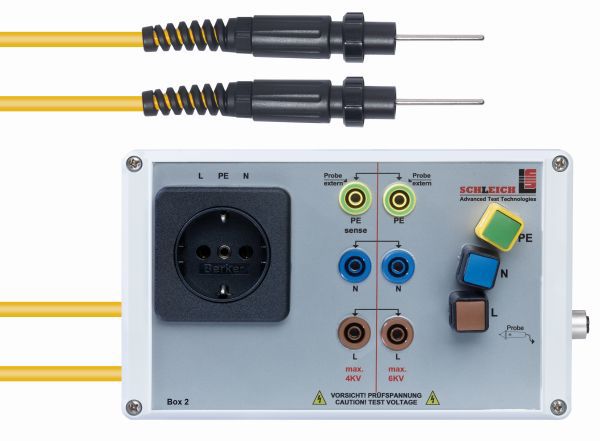

Connection box model 2

• 1-phase
• Only for high-voltage tests
• 1-phase socket
• Lead length: 2 m

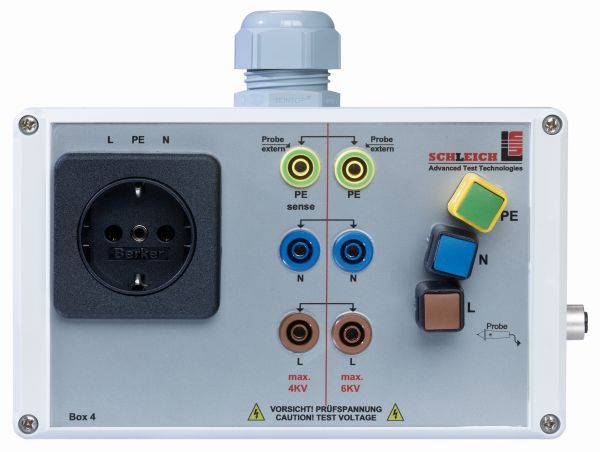

Connection box model 4

• 1-phase
• For PE-resistance tests
• For insulation resistance tests
• For function tests
• Optional for leakage current tests
• Optional high-voltage tests
• 1-phase socket
• PE-test current: 30 A
• Function-test current: 16 A
• Integrated connection for test probes
• lead length: 2 m

Connection box model 4 only HV

• For high-voltage tests
• 1-phase socket
• 2 connection pads to contact with two safety test probes

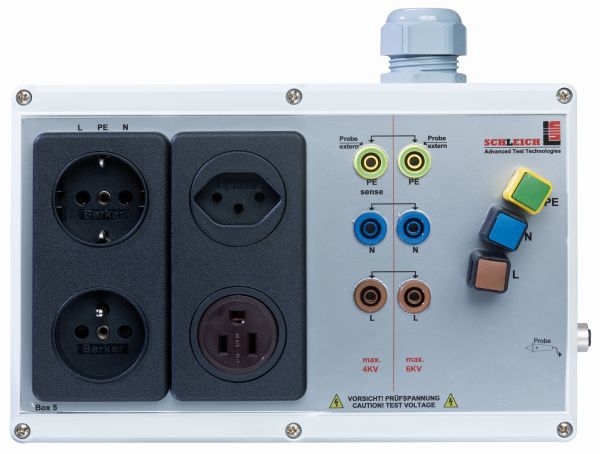

Connection box model 5

• 1-phase
• For PE-resistance tests
• For insulation resistance tests
• For function tests
• Optional for leakage current tests
• Optional high-voltage tests
• 1-phase socket
• 4 x 1-phase sockets
• PE-test current: 30 A
• Function-test current: 16 A
• Integrated connection for test probes
• lead length: 2 m

Connection box model 5 only HV

• For high-voltage tests
• 4 x 1-phase socket
• 2 connection pads to contact with two safety test probes

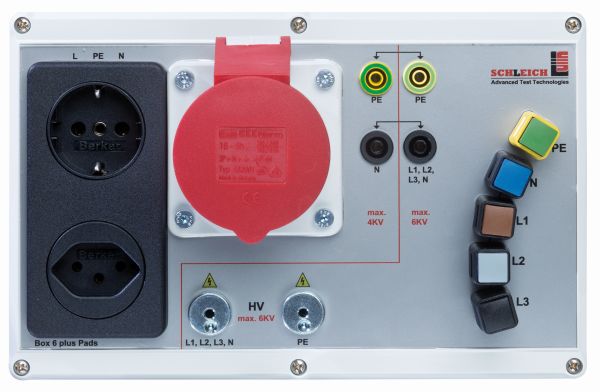

Connection box model 6

• 1-phase
• For PE-resistance tests
• For insulation resistance tests
• For function tests
• Optional for leakage current tests
• Optional high-voltage tests
• 2 x 1-phase socket
• 1 x 3-phase CEE-socket 16 A
• PE-test current: 30 A
• Function test current: 16 A
• 1-phase
• Integrated connection for test probes
• lead length: 2 m

Connection box model 6 only HV

• For high-voltage tests
• 1 x 1-phase socket
• 1 x 3-phase CEE-socket 16 A
• 2 connection pads to contact with two safety test probes

Connection box model 7

• 1-phase
• For PE-resistance tests
• For insulation resistance tests
• For function tests
• Optional for leakage current tests
• Optional high-voltage tests
• 2 x 1-phase socket
• 1 x 3-phase CEE-socket 32 A
• PE-test current: 30 A
• Function test current: 16 A
• 1-phase
• Integrated connection for test probe
• Lead length: 2 m

Connection box model 7 only HV

• For high-voltage tests
• 1 x 1-phase socket
• 1 x 3-phase CEE-socket 32 A
• 2 connection pads to contact with two safety test probes

Pneumatic universal socket

• 1 x 1-phase socket
• PE-test current: 10 A
• Function test current: 16 A
• 1-phase
