Everything on hand - no problem with the roller table.

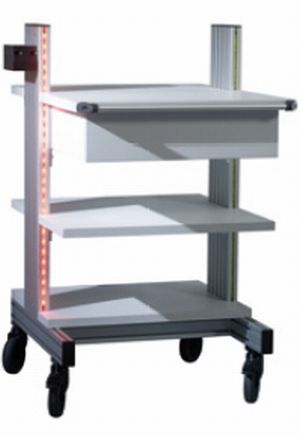

The roller table is ideally-suited for transporting testers or testers combined with test cover in production.
It´s very solid, stable and made from aluminium profiles which make it easy to roll it from tester to tester, even under rough working conditions.
The high and stable rubber rollers assure a good mobility. All rollers are steerable and eqipped with brakes, to be activated with by the foot.
Additionally the roller tables may be equipped with fully-extendable drawers to store adapters, tools, documentation, and so on.
All benefits at a glance.
The modular heavy duty roller table
Roller table | Basic rack
The roller table has a modular construction. As basis serves the basic rack, all further components are added.
| Height |
1,07 m |
| Outside width |
0,69 m |
| Inside width |
0,61 m |
| Depth |
0,91 m |
| Depth foot strut |
0,72 m |
| Roller diameter |
120 mm |
Basic rack + extended side struts
The side struts may be extended upwards. This is especially useful if a test cover and a tester is installed in the rack at optimum viewing height (above the test cover).
| Extension |
0,45 m |
| Total height |
1,52 m |
Basic rack+ horizontal table top XL
The basic rack is equipped with a horizontal table top (size XL). By means of the optional push handle (4000959) at the table´s front side, the table may easily be moved, pushed and pulled. The table top is continuously adjustable in height. Thus you are able to adjust the table at the optimum working position. NOTE: The table top is marked with a red dot in the picture.
| Outside width |
0,69 m |
| Inside width |
0,61 m |
| Depth |
0,87 m |
| Depth with handle * |
0,91 m |
| Table top thickness |
3 cm |
Basic rack+ sloping table top XL
The basic rack is equipped with a 3/4 sloping table top, size XL. By means of the optional push handle (4000959) at the table´s front side, the table may easily be moved, pushed and pulled. The table top is continuously adjustable in height. Thus you are able to adjust the table at the optimum working position. NOTE: The table top is marked with a red dot in the picture.
| Outside width |
0,69 m |
| Inside width |
0,61 m |
| Depth |
0,87 m |
| Depth with handle * |
0,91 m |
| Table top thickness |
3 cm |
Basic rack + horizontal table top, size L
The basic rack is equipped with a horizontal table top (size L). The table top is continuously adjustable in height. Thus you are able to adjust the table at the optimum working position. NOTE: The table top is marked with a red dot in the picture.
| Outside width |
0,69 m |
| Inside width |
0,61 m |
| Depth |
0,72 m |
| Table top thickness |
3 cm |
Basic rack + horizontal table top, size M with 2 cable passages
The basic rack is equipped with an horizontal table top (size M). Both sides of the table top have an integrated cable passage. Thus, the table top is ideally suited for placing a tester, a printer or a screen on it. The table top is continuously adjustable in height. Thus you are able to adjust the table at the optimum working position. NOTE: The table top is marked with a red dot in the picture.
| Outside width |
0,69 m |
| Inside width |
0,61 m |
| Depth |
0,53 m |
| Table top thickness |
3 cm |
Basic rack + cable winder on left/ right side
The basic rack is equippable with a cable winder. On this winder, e.g. long leads may easily be winded. The single winders are continuously adjustable in height. Thus you are able to adjust the winders at the optimum working position. NOTE: The cable winder is marked with a red dot in the picture.
Basic rack+ holder for HV-test probes (right side)
The basic rack is equippable with a holder for two HV-test probes. Two test probes may comfortably be placed there. The holder is continuously adjustable in height. Thus you are able to adjust it at the optimum working position. NOTE: The holder is marked with a red dot in the picture.
Basic rack + holder for PE-test probe (right side)
The basic rack is equippable with a holder for a PE-test probe. The holder is continuously adjustable in height. Thus you are able to adjust it at the optimum working position. NOTE: The holder is marked with a red dot in the picture.
Basic rack+ integrated warning lights (LED) in the struts (0,9m)
The basic rack is equippable with warning LED-lights. By this, it is clearly indicated, if a test object is connected to voltage or if it´s voltage-free. The LED-stripes are located in the basic rack´s slots. NOTE: Both positions of the LED-stripes are marked with green and red arrows in the picture.
